Description
Polarization Maintaining Optical Fiber Mirror-2000nm
Polarization Maintaining Optical Fiber Mirror-2000nm
Specifications
| Parameters | Unit | Values |
| Operating Wavelength | nm | 1870; 1950; 2000; 2050; 2100; |
| Operating Bandwidth | nm | ±20 |
| Insertion Loss | dB | ≤0.8 (Typ. 0.5) |
| ER | dB | ≥20 |
| Power Handling | mW | ≤300 |
| Fiber Type | PM1550, PM1950 | |
| Operating Temperature | ℃ | -5 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Dimensions | mm | φ5.5×35; φ3x12 |

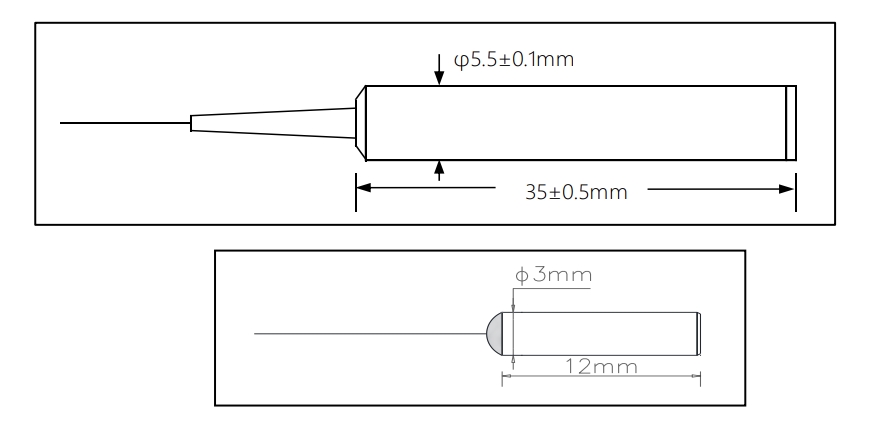

Package Dimensions
Ordering Information
| Wavelength | 1870; 1950; 2000; 2050; 2100; |
| Pigtail Type | 250=250um Fiber; 900=900um Loose Tube; |
| Fiber Type | PM1550; PM1950; |
| Length | 1=1m; |
| Connector | NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; XX=Other; |
| Package Size | 5.5×35; 3x12; |
